1. Over 130 Default shapes
that can be used for building your own application.
UCCDraw ActiveX Control is a
general-purpose software component that can be used to display various
types of diagrams and flow charts, in many different formats. It is implemented
as an ActiveX control and can be easily integrated into any application
targeting Microsoft Windows. By providing your software with ready to use
capabilities for visualizing and editing relational data, UCCDraw ActiveX
Control saves you from hundreds of hours of coding and debugging efforts.
The base framework of
UCCDraw Diagram ActiveX Control is the world leading flow diagram
component E-Form++ Library, so almost all the features of E-Form++ can be
called with UCCDraw ActiveX Control. There is no limits with the drawing
shapes of UCCDraw, by default, you can easily create over 130 basic
shapes that already shipped with E-Form++ MFC Library, as below:

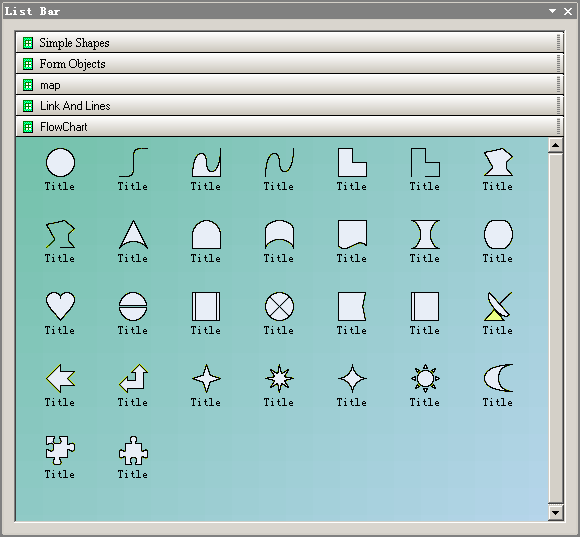

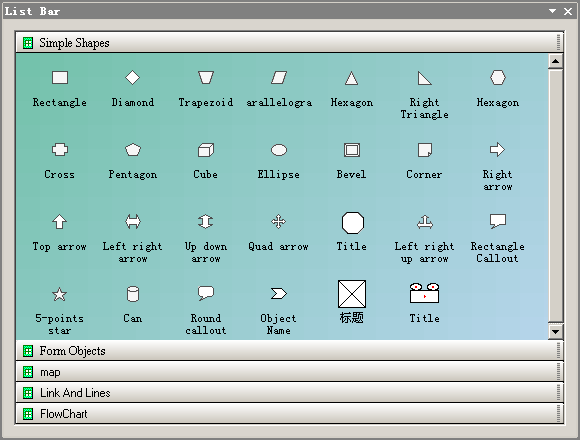

Shapes Category 1:

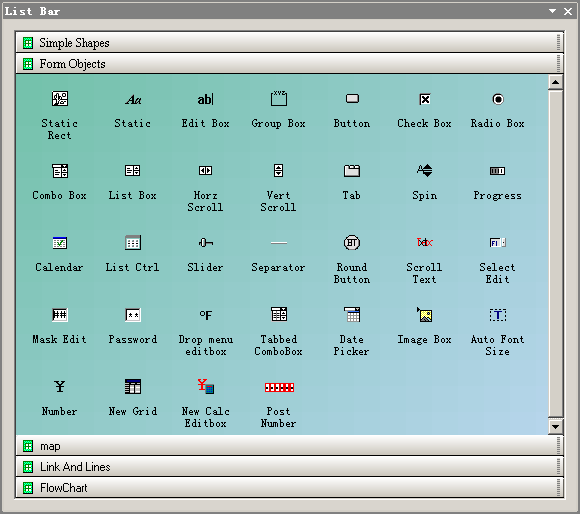

Shapes Category 2:
Shapes Category 3:

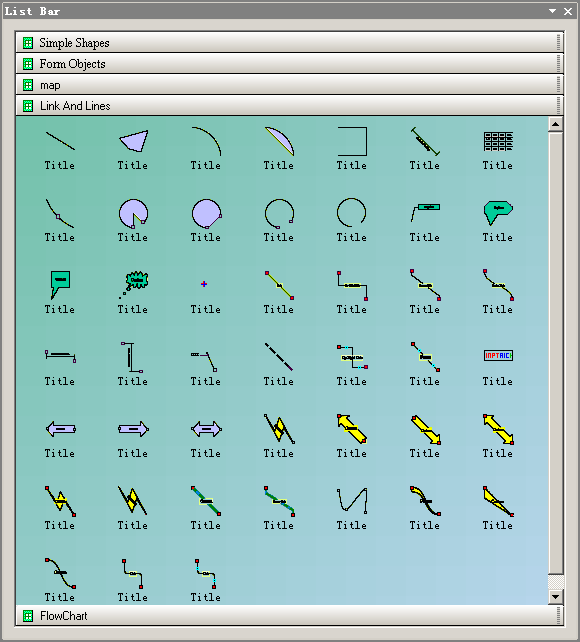

Shapes Category 4:
These shapes include basic
vector drawing shapes, flowchart link shapes, gauge shapes, and other
shapes for CAD, Workflow,
Electronic Form shapes, print shapes, etc. These
are also only the default shapes that UCCDraw platform supports, and they
are also sample shapes that UCCDraw supports, UCCDraw supports many many
kind of Custom Drawing shapes, you can easily create any kind of shapes as
you need.
With UCCDraw, you have the
following three methods to draw these shapes:
1. Drawing with
Mouse, by calling:
void DrawCustomRect(long
nType);
The nType will be the value
from 0 to 200, each value is a type of drawing shape.
2. Create shape with
codes that supports Undo / Redo. By calling:
long AddShapeByType(short nType, short xLeft, short yTop, short xRight, short yBottom, LPCTSTR lpszFileName);
3. Create shape with
codes that doesn't support Undo / Redo, by calling:
long CreateShape(short nType, short xLeft, short yTop, short xRight, short yBottom, LPCTSTR
lpszFileName);
